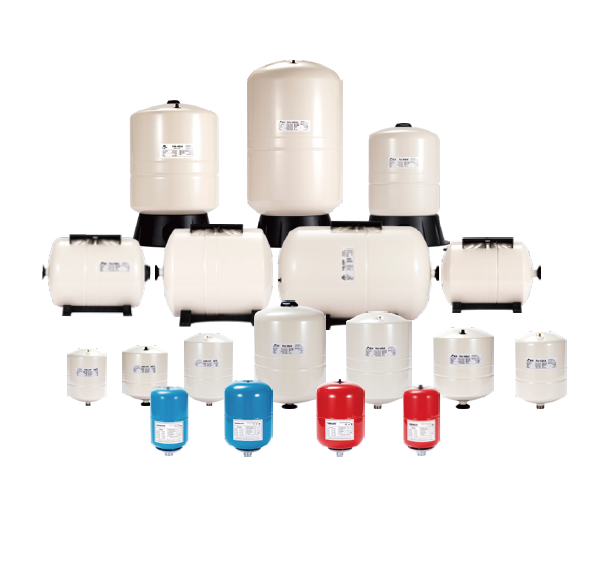

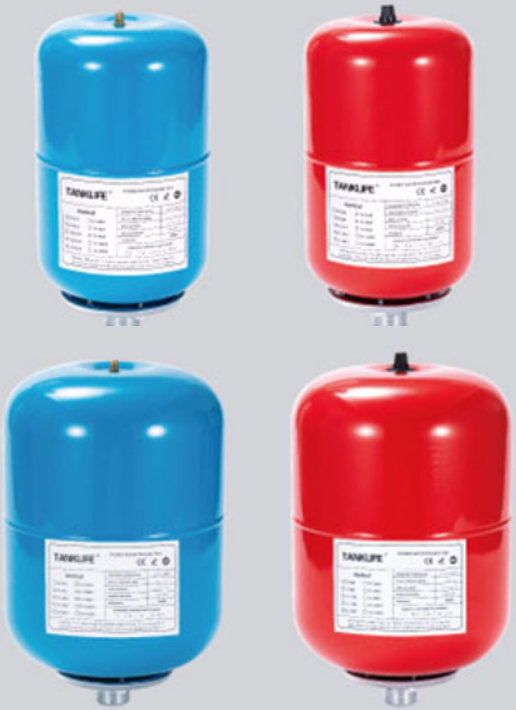

Fixed Expansion Tanks

Max.Operating Pressure:	10 bar /145 psi
Factory Pre-charge:	1.9 bar /28 psi
Test Pressure:	14.3bar/207psi
Min.Op.Temp.: (avoid freezing)	-10°C/14°F
Max.Operating Temp.:	90°C / 194°F
Material of interface:	304 stainless steel
Connection:	1"BSPT

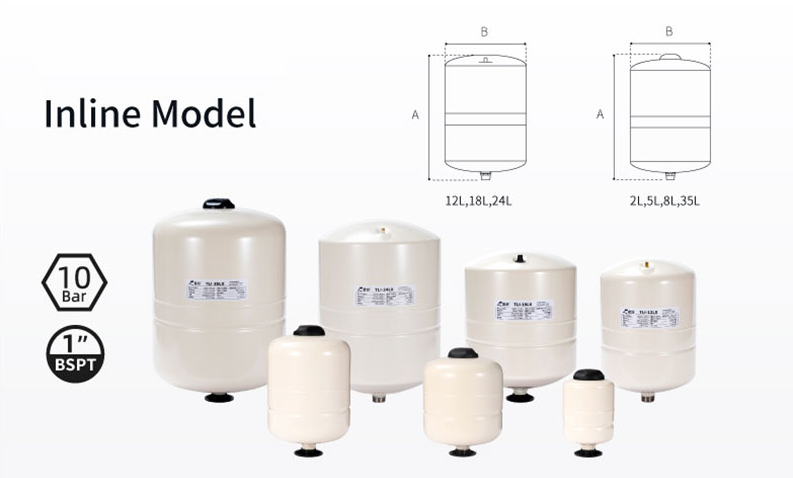

Inline Model Tanks

Model Number	Conection (in)	Nominal Volume (L/G)	Dimensions (mm)			Weight		wall thickness (mm)
			A	B	C	kg	lb
TLI-2LX	1"BSPT	2 / 0.5	208	126	-	1.05	2.32	1.1
TLI-5LX		5 / 1.3	272	202	-	2	4.41
TLI-8LX		8 / 2.1	310	202	-	2.3	5.07
TLI-12LX		12 / 3.2	353	230	-	3	6.61
TLI-18LX		18 / 4.8	374	278	-	3.85	8.49
TLI-24LX		24 / 6.3	440	290	-	4.7	10.36
TLI-35LX		35 / 9.2	480	318	-	5.55	12.24	1.1

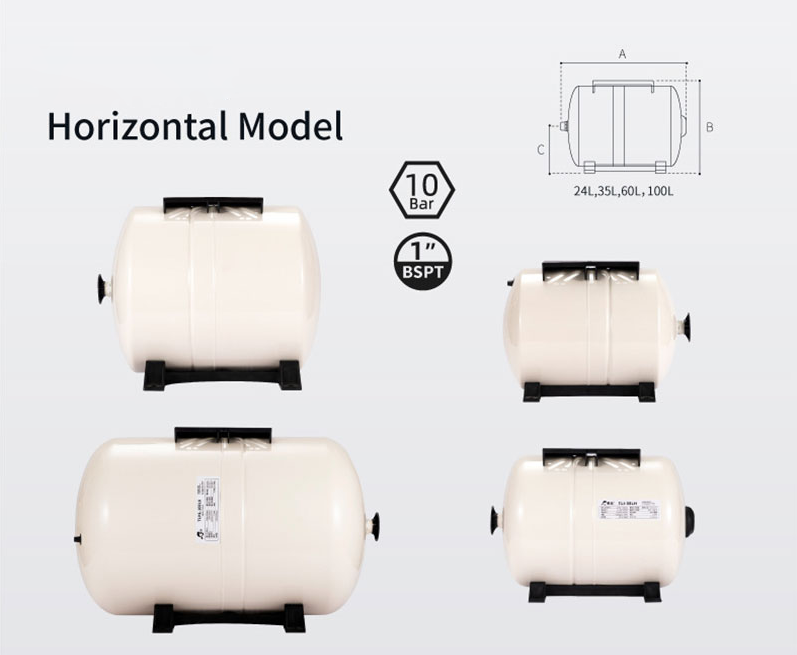

Horizontal Model Tanks

Model Number	Conection (in)	Nominal Volume (L/G)	Dimensions (mm)			Weight		wall thickness (mm)
			A	B	C	kg	lb
TLI-24LH	1"BSPT	24 / 6.3	447	322	163	5.15	11.35	1.1
TLI-35LH		35 / 9.2	480	352	177	5.95	13.12
TLI-60LH		60 / 15.9	530	422	213	10.9	24.03	1.5
TLI-100LH		100 / 26.4	720	466	237	15.35	33.73

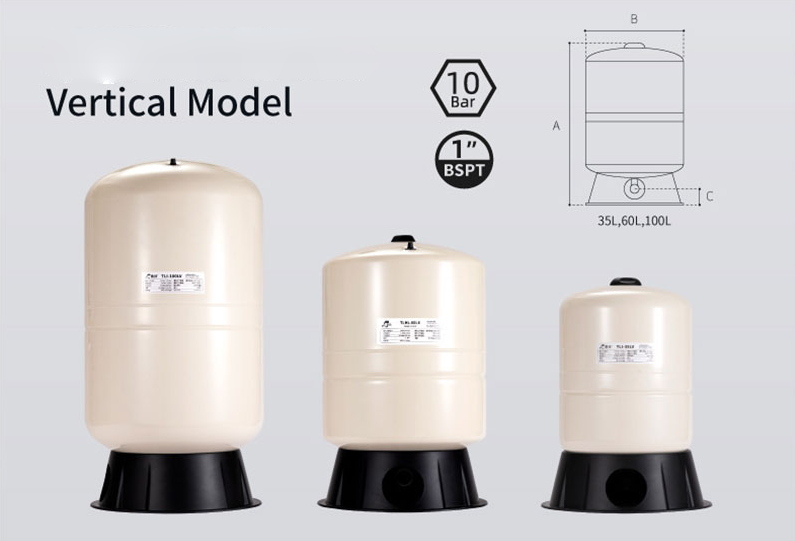

Vertical Model Tanks

Model Number	Conection (in)	Nominal Volume (L/G)	Dimensions (mm)			Weight		wall thickness (mm)
			A	B	C	kg	lb
TLI-35LV	1"BSPT	35 / 7.95	550	318	63	6.2	13.67	1.1
TLI-60LV		60 / 15.9	623	387	67	11	24.25
TLI-100LV		100 / 26.4	810	428	66	15.5	34.17	1.5

Product details

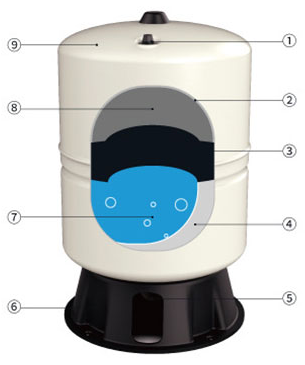

Product Structure

1. ① O-ring protection no leakage air valve cover
2. ② Thickened 1.1mm carbon steel tank body 10bar pressure resistance
3. ③ Fixed butyl rubber diaphragm, no air leakage and maintenance-free
4. ④ Food grade and corrosion-resistant polypropylene lining
5. ⑤ Reinforced 304 stainless steel interface
6. ⑥ Replaceable reinforced engineering thermoplastic brackets and feet
7. ⑦ Water storage area is isolated from the barrel wall
8. ⑧ Air storage chamber
9. ⑨ Durable and high-adhesion spray plastic coating

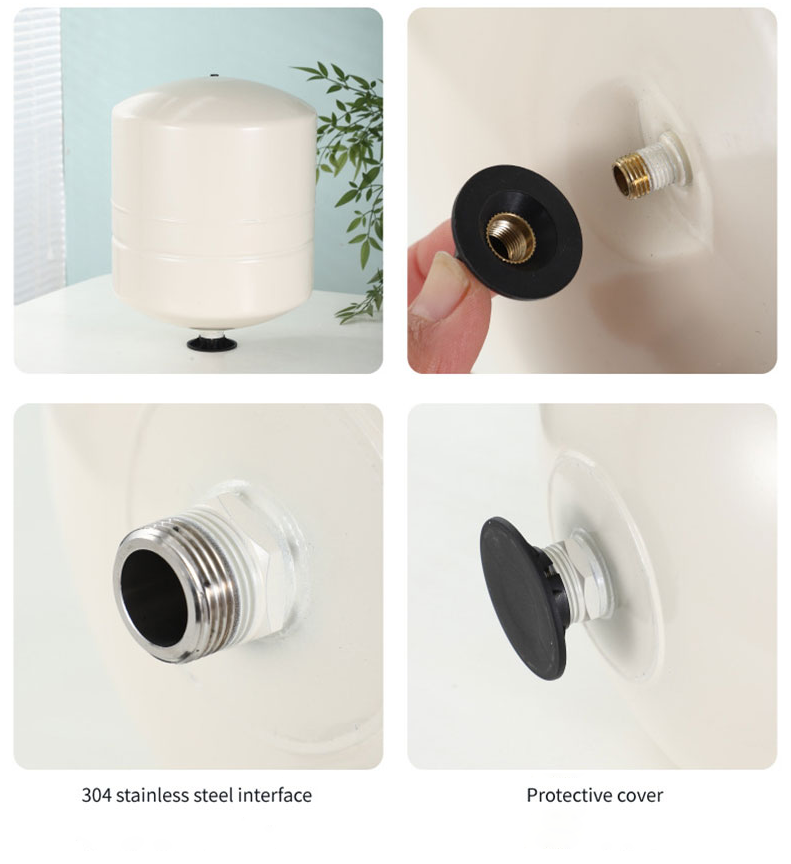

Product Detail Photos
